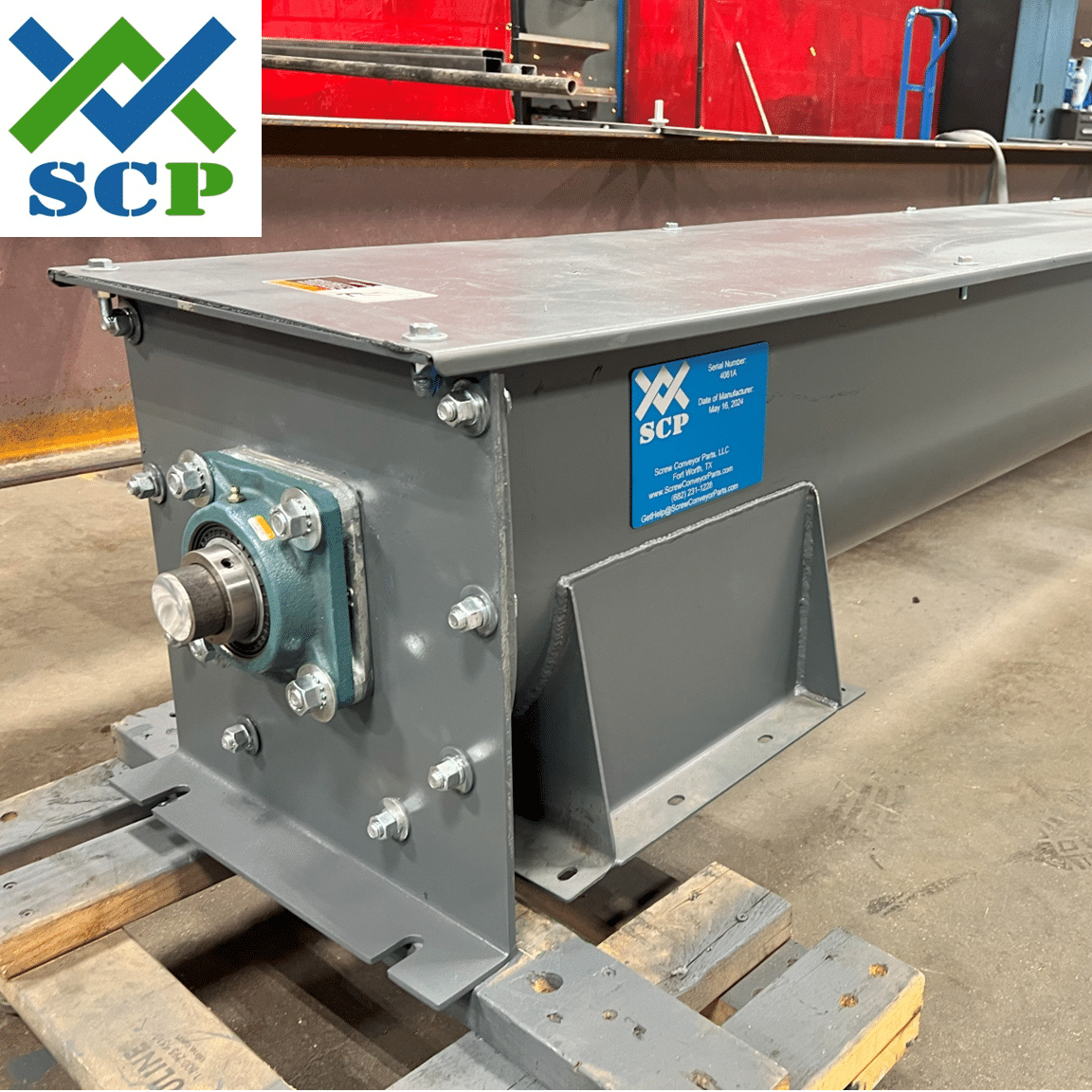

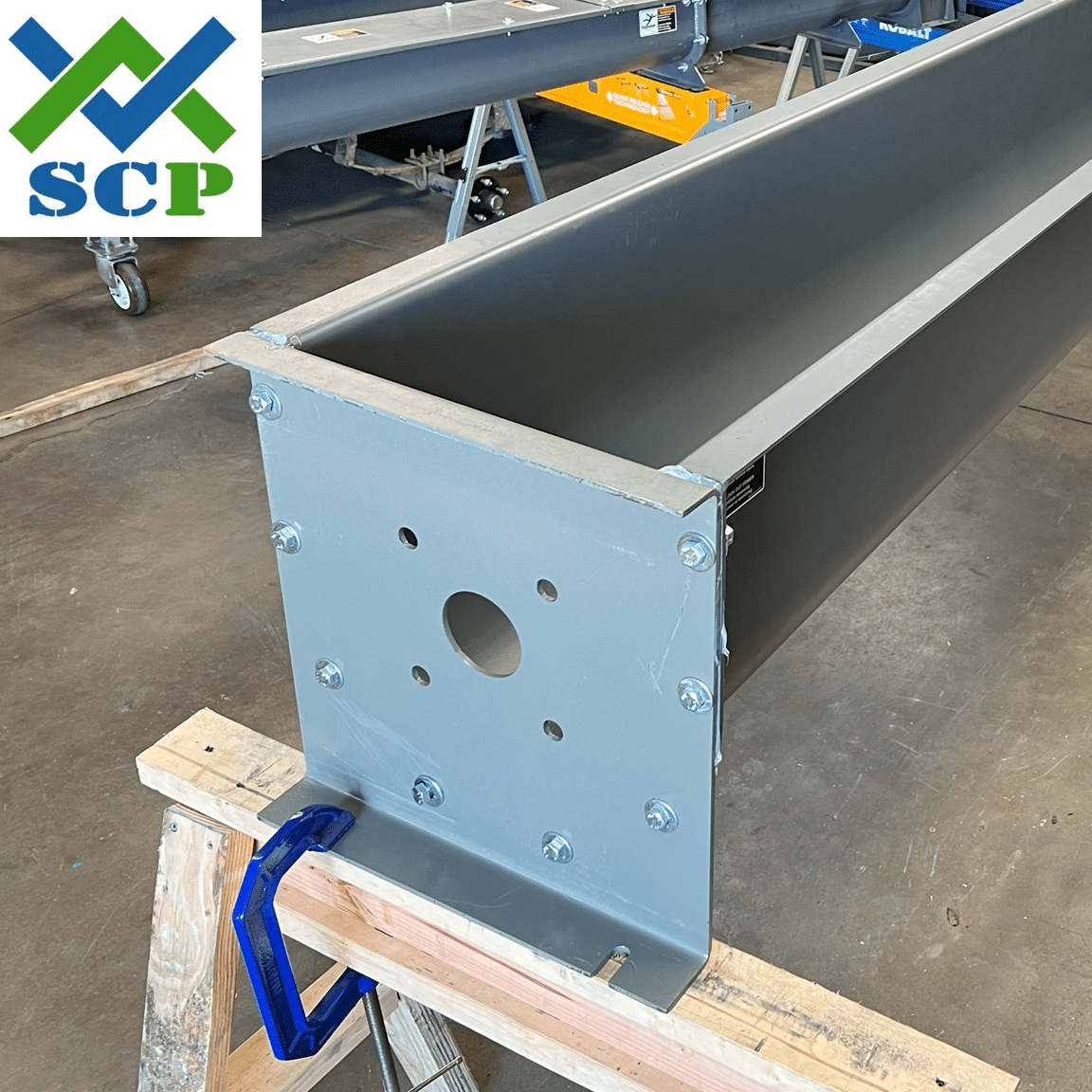

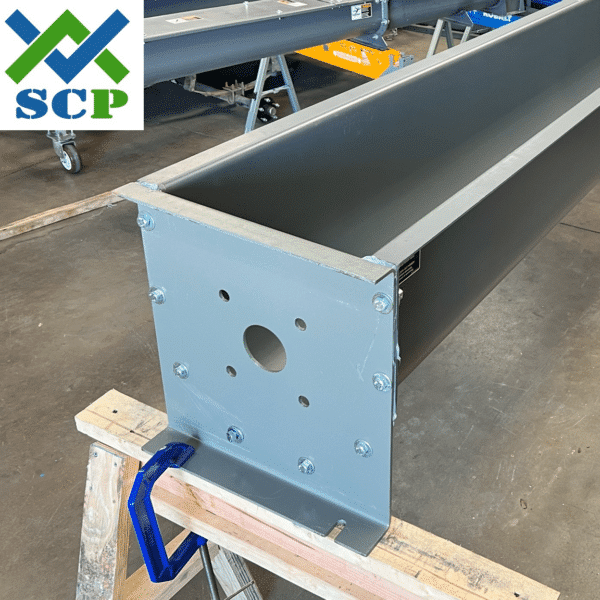

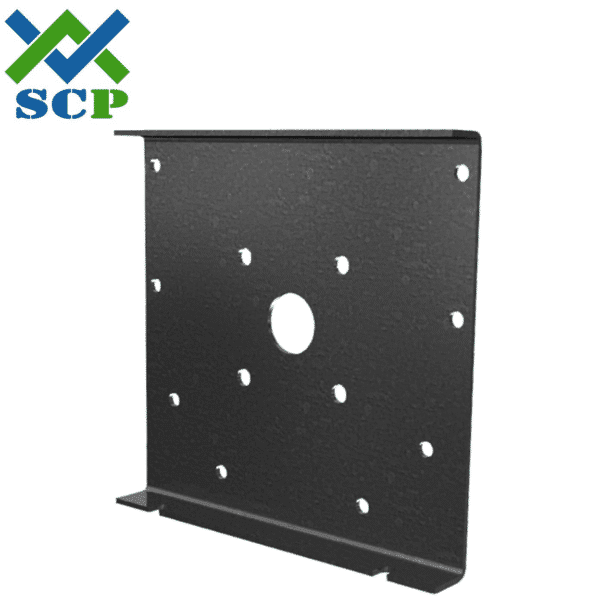

Trough End, With Foot, U-Trough, 24″ Diameter, 3 7/16″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Ball Bearing or Roller Bearing, Carbon Steel (C.S) – Martin PN 24TEF7-BB, Conveyors Inc PN TEF243716-BB, KWS PN TEFO243716UBB
Trough End, With Foot, U-Trough, 24″ Diameter, 3 7/16″ Shaft Size, Drilled for a Flanged Ball Bearing or Roller Bearing
Price: $ 302.35
Trough End, With Foot, U-Trough, 24″ Diameter, 3 7/16″ Shaft Size, Flanged Ball Bearing or Roller Bearing
Additional information
| Weight | 162 lbs |
|---|---|

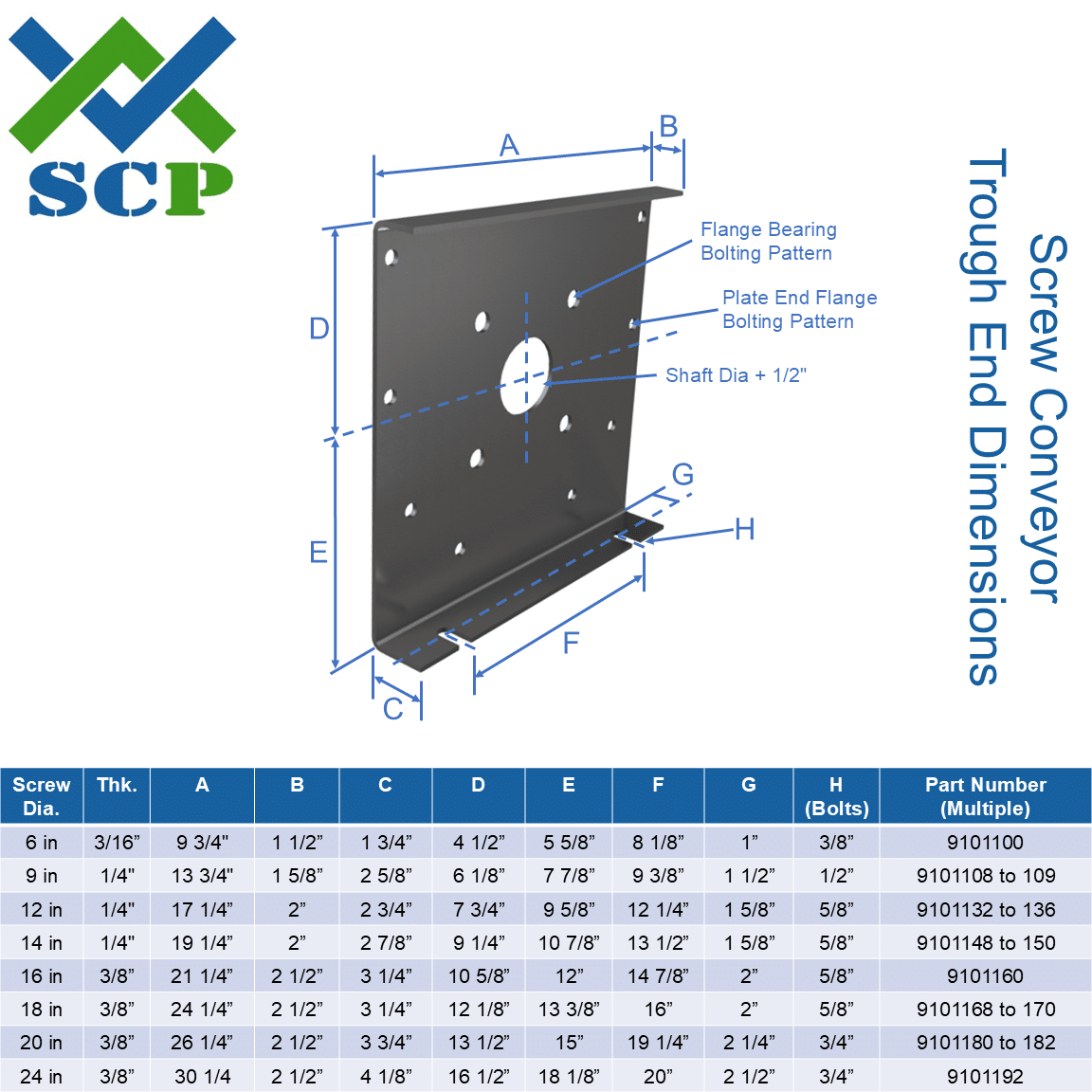

| Dimensions | 2.5 × 30.25 × 34.625 in |
| Material of Construction | Carbon Steel |
| Screw Conveyor Size | 24" |
| Shaft Size | 3 7/16" |
| Trough End Type | With Foot |
| Bearing Type | Flanged Ball Bearing or Roller Bearing |
| Trough End Pattern | Outside Bolting Pattern |
Ships in 1-3 days.
SCP PN: 9101192
Recommended Parts & Accessories
Trough End, With Foot, U-Trough, 24″ Diameter, 3 7/16″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Ball Bearing or Roller Bearing, Carbon Steel (C.S) – Martin PN 24TEF7-BB, Conveyors Inc PN TEF243716-BB, KWS PN TEFO243716UBB
Additional information
| Weight | 162 lbs |
|---|---|
| Dimensions | 2.5 × 30.25 × 34.625 in |
| Material of Construction | Carbon Steel |
| Screw Conveyor Size | 24" |
| Shaft Size | 3 7/16" |
| Trough End Type | With Foot |
| Bearing Type | Flanged Ball Bearing or Roller Bearing |
| Trough End Pattern | Outside Bolting Pattern |
Recommended Parts & Accessories
-
Bearing, 3 7/16″ Shaft Size, Flanged Ball Bearing
Price: $ 974.94 SCP PN: 7102104 -
Bolt Kit, Screw Conveyor Adapter, 3 7/16″ Shaft Size
Price: $ 22.24 SCP PN: 8109120 -
Shaft Seal, SCP Master Seal, 3 7/16″ Shaft Size
Price: $ 780.00 SCP PN: 9111124 -
Bolt Kit, Waste Pack Seal, Flanged Roller Bearing, 3 7/16″ Shaft Size
Price: $ 27.07 SCP PN: 8109128 -
Bearing, 3 7/16″ Shaft Size, Flanged Roller Bearing
Price: $ 1,556.42 SCP PN: 7102109 -
Bolt Kit, Trough End, U-Trough, 24″ Diameter
Price: $ 29.01 SCP PN: 8109110 -
Bolt Kit, Waste Pack Seal, Flanged Ball Bearing, 3 7/16″ Shaft Size
Price: $ 24.86 SCP PN: 8109115
