(Use Ctrl F to search for a part number)
Screw conveyor parts and screw conveyor components are dimensionally standardized trough the Conveyor Equipment Manufacturers Association (CEMA) and the CEMA 300. Because of these screw conveyor dimensional standards, screw conveyor components are interchangeable among manufacturers. With the information below of screw conveyor troughs and trough ends you can cross reference your KWS Manufacturing, Martin Conveyor and Conveyors Inc part numbers to the Screw Conveyor Parts.NET part numbers.
Click Here to shop for Troughs!
Click here to shop for trough ends!

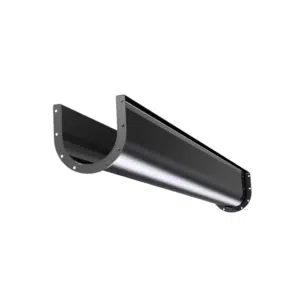

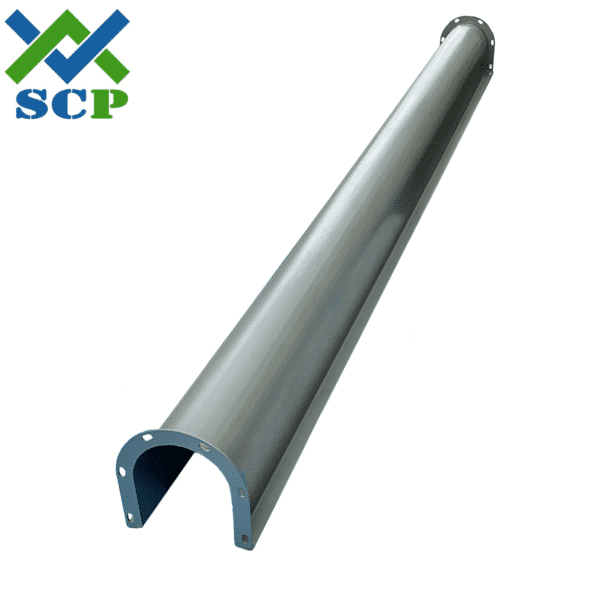

Screw Conveyor Trough Part Numbers
SCP PN | CI PN | Martin PN | KWS PN | Long Description |
9100100 | AT614 | 6CTA14-10 | TUA614-120 | Trough, U-Trough, 6″ Diameter, 14GA Thk., Angle Flange, 10′ LG, Carbon Steel (C.S) |
9100101 | FT614 | 6CTF14-10 | TUF614-120 | Trough, U-Trough, 6″ Diameter, 14GA Thk., Formed Flange, 10′ LG, Carbon Steel (C.S) |
9100102 | FT67 | 6CTF7-10 | TUF6316-120 | Trough, U-Trough, 6″ Diameter, 3/16″ Thk., Formed Flange, 10′ LG, Carbon Steel (C.S) |
9100103 | AT914 | 9CTA14-10 | TUA914-120 | Trough, U-Trough, 9″ Diameter, 14GA Thk., Angle Flange, 10′ LG, Carbon Steel (C.S) |
9100104 | AT910 | 9CTA10-10 | TUA910-120 | Trough, U-Trough, 9″ Diameter, 10GA Thk., Angle Flange, 10′ LG, Carbon Steel (C.S) |
9100105 | FT97 | 9CTF7-10 | TUF9316-120 | Trough, U-Trough, 9″ Diameter, 3/16″ Thk., Formed Flange, 10′ LG, Carbon Steel (C.S) |
9100106 | AT1014 | 10CTA14-10 | TUA1014-120 | Trough, U-Trough, 10″ Diameter, 14GA Thk., Angle Flange, 10′ LG, Carbon Steel (C.S) |
9100107 | AT1010 | 10CTA10-10 | TUA1010-120 | Trough, U-Trough, 10″ Diameter, 10GA Thk., Angle Flange, 10′ LG, Carbon Steel (C.S) |
9100108 | FT107 | 10CTF7-10 | TUF10316-120 | Trough, U-Trough, 10″ Diameter, 3/16″ Thk., Formed Flange, 10′ LG, Carbon Steel (C.S) |
9100109 | AT107 | 10CTA7-10 | TUA10316-120 | Trough, U-Trough, 10″ Diameter, 3/16″ Thk., Angle Flange, 10′ LG, Carbon Steel (C.S) |
9100110 | AT1212 | 12CTA12-12 | TUA1212-144 | Trough, U-Trough, 12″ Diameter, 12GA Thk., Angle Flange, 12′ LG, Carbon Steel (C.S) |
9100111 | FT127 | 12CTF7-12 | TUF12316-144 | Trough, U-Trough, 12″ Diameter, 3/16″ Thk., Formed Flange, 12′ LG, Carbon Steel (C.S) |
9100112 | AT1412 | 14CTA12-12 | TUA1412-144 | Trough, U-Trough, 14″ Diameter, 12GA Thk., Angle Flange, 12′ LG, Carbon Steel (C.S) |
9100113 | FT147 | 14CTF7-12 | TUF14316-144 | Trough, U-Trough, 14″ Diameter, 3/16″ Thk., Formed Flange, 12′ LG, Carbon Steel (C.S) |
9100114 | AT1612 | 16CTA12-12 | TUA1612-144 | Trough, U-Trough, 16″ Diameter, 12GA Thk., Angle Flange, 12′ LG, Carbon Steel (C.S) |
9100115 | FT167 | 16CTF7-12 | TUF16316-144 | Trough, U-Trough, 16″ Diameter, 3/16″ Thk., Formed Flange, 12′ LG, Carbon Steel (C.S) |
9100116 | FT1810 | 18CTF10-12 | TUF1810-144 | Trough, U-Trough, 18″ Diameter, 10GA Thk., Formed Flange, 12′ LG, Carbon Steel (C.S) |
9100117 | FT1812 | 18CTF12-12 | TUF1812-144 | Trough, U-Trough, 18″ Diameter, 12GA Thk., Formed Flange, 12′ LG, Carbon Steel (C.S) |
9100118 | AT187 | 18CTA7-12 | TUA18316-144 | Trough, U-Trough, 18″ Diameter, 3/16″ Thk., Angle Flange, 12′ LG, Carbon Steel (C.S) |
9100119 | FT187 | 18CTF7-12 | TUF18316-144 | Trough, U-Trough, 18″ Diameter, 3/16″ Thk., Formed Flange, 12′ LG, Carbon Steel (C.S) |
9100120 | AT2010 | 20CTA10-12 | TUA2010-144 | Trough, U-Trough, 20″ Diameter, 10GA Thk., Angle Flange, 12′ LG, Carbon Steel (C.S) |
9100121 | AT207 | 20CTA7-12 | TUA20316-144 | Trough, U-Trough, 20″ Diameter, 3/16″ Thk., Angle Flange, 12′ LG, Carbon Steel (C.S) |
9100122 | AT2410 | 24CTA10-12 | TUA2410-144 | Trough, U-Trough, 24″ Diameter, 10GA Thk., Angle Flange, 12′ LG, Carbon Steel (C.S) |
9100123 | AT247 | 24CTA7-12 | TUA24316-144 | Trough, U-Trough, 24″ Diameter, 3/16″ Thk., Angle Flange, 12′ LG, Carbon Steel (C.S) |
Screw Conveyor Trough End Part Numbers
SCP PN | CI PN | Martin PN | KWS PN | Long Description |
9101100 | TEF6112-BB | 6TEF3-BB | TEFO6112UBB | Trough End, With Foot, U-Trough, 6″ Diameter, 1 1/2″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Ball Bearing, Carbon Steel (C.S) |
9101101 | TEF62-BB | 6TEF4-BB | TEFO62UBB | Trough End, With Foot, U-Trough, 6″ Diameter, 2″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Ball Bearing, Carbon Steel (C.S) |
9101102 | TEF6112-RB | 6TEF3-RB | TEFO6112URB | Trough End, With Foot, U-Trough, 6″ Diameter, 1 1/2″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Roller Bearing, Carbon Steel (C.S) |
9101103 | TEF62-RB | 6TEF4-RB | TEFO62URB | Trough End, With Foot, U-Trough, 6″ Diameter, 2″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Roller Bearing, Carbon Steel (C.S) |
9101104 | TE6112-BB | 6TE3-BB | TEWO6112UBB | Trough End, Without Foot, U-Trough, 6″ Diameter, 1 1/2″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Ball Bearing, Carbon Steel (C.S) |
9101105 | TE62-BB | 6TE4-BB | TEWO62UBB | Trough End, Without Foot, U-Trough, 6″ Diameter, 2″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Ball Bearing, Carbon Steel (C.S) |
9101106 | TE6112-RB | 6TE3-RB | TEWO6112URB | Trough End, Without Foot, U-Trough, 6″ Diameter, 1 1/2″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Roller Bearing, Carbon Steel (C.S) |
9101107 | TE62-RB | 6TE4-RB | TEWO62URB | Trough End, Without Foot, U-Trough, 6″ Diameter, 2″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Roller Bearing, Carbon Steel (C.S) |
9101108 | TEF9112-BB | 9TEF3-BB | TEFO9112UBB | Trough End, With Foot, U-Trough, 9″ Diameter, 1 1/2″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Ball Bearing, Carbon Steel (C.S) |
9101109 | TEF9112-RB | 9TEF3-RB | TEFO9112URB | Trough End, With Foot, U-Trough, 9″ Diameter, 1 1/2″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Roller Bearing, Carbon Steel (C.S) |
9101110 | TE9112-BB | 9TE3-BB | TEWO9112UBB | Trough End, Without Foot, U-Trough, 9″ Diameter, 1 1/2″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Ball Bearing, Carbon Steel (C.S) |
9101111 | TE9112-RB | 9TE3-RB | TEWO9112URB | Trough End, Without Foot, U-Trough, 9″ Diameter, 1 1/2″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Roller Bearing, Carbon Steel (C.S) |
9101112 | TEF92-BB | 9TEF4-BB | TEFO92UBB | Trough End, With Foot, U-Trough, 9″ Diameter, 2″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Ball Bearing, Carbon Steel (C.S) |
9101113 | TEF92-RB | 9TEF4-RB | TEFO92URB | Trough End, With Foot, U-Trough, 9″ Diameter, 2″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Roller Bearing, Carbon Steel (C.S) |
9101114 | TE92-BB | 9TE4-BB | TEWO92UBB | Trough End, Without Foot, U-Trough, 9″ Diameter, 2″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Ball Bearing, Carbon Steel (C.S) |
9101115 | TE92-RB | 9TE4-RB | TEWO92URB | Trough End, Without Foot, U-Trough, 9″ Diameter, 2″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Roller Bearing, Carbon Steel (C.S) |
9101116 | TEF92716-BB | 9TEF5-BB | TEFO92716UBB | Trough End, With Foot, U-Trough, 9″ Diameter, 2 7/16″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Ball Bearing, Carbon Steel (C.S) |
9101117 | TEF92716-RB | 9TEF5-RB | TEFO92716URB | Trough End, With Foot, U-Trough, 9″ Diameter, 2 7/16″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Roller Bearing, Carbon Steel (C.S) |
9101118 | TE92716-BB | 9TE5-BB | TEWO92716UBB | Trough End, Without Foot, U-Trough, 9″ Diameter, 2 7/16″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Ball Bearing, Carbon Steel (C.S) |
9101119 | TE92716-RB | 9TE5-RB | TEWO92716URB | Trough End, Without Foot, U-Trough, 9″ Diameter, 2 7/16″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Roller Bearing, Carbon Steel (C.S) |
9101120 | TEF10112-BB | 10TEF3-BB | TEFO10112UBB | Trough End, With Foot, U-Trough, 10″ Diameter, 1 1/2″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Ball Bearing, Carbon Steel (C.S) |
9101121 | TEF10112-RB | 10TEF3-RB | TEFO10112URB | Trough End, With Foot, U-Trough, 10″ Diameter, 1 1/2″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Roller Bearing, Carbon Steel (C.S) |
9101122 | TE10112-BB | 10TE3-BB | TEWO10112UBB | Trough End, Without Foot, U-Trough, 10″ Diameter, 1 1/2″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Ball Bearing, Carbon Steel (C.S) |
9101123 | TE10112-RB | 10TE3-RB | TEWO10112URB | Trough End, Without Foot, U-Trough, 10″ Diameter, 1 1/2″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Roller Bearing, Carbon Steel (C.S) |
9101124 | TEF102-BB | 10TEF4-BB | TEFO102UBB | Trough End, With Foot, U-Trough, 10″ Diameter, 2″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Ball Bearing, Carbon Steel (C.S) |
9101125 | TEF102-RB | 10TEF4-RB | TEFO102URB | Trough End, With Foot, U-Trough, 10″ Diameter, 2″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Roller Bearing, Carbon Steel (C.S) |
9101126 | TE102-BB | 10TE4-BB | TEWO102UBB | Trough End, Without Foot, U-Trough, 10″ Diameter, 2″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Ball Bearing, Carbon Steel (C.S) |
9101127 | TE102-RB | 10TE4-RB | TEWO102URB | Trough End, Without Foot, U-Trough, 10″ Diameter, 2″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Roller Bearing, Carbon Steel (C.S) |
9101128 | TEF102716-BB | 10TEF5-BB | TEFO102716UBB | Trough End, With Foot, U-Trough, 10″ Diameter, 2 7/16″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Ball Bearing, Carbon Steel (C.S) |
9101129 | TEF102716-RB | 10TEF5-RB | TEFO102716URB | Trough End, With Foot, U-Trough, 10″ Diameter, 2 7/16″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Roller Bearing, Carbon Steel (C.S) |
9101130 | TE102716-BB | 10TE5-BB | TEWO102716UBB | Trough End, Without Foot, U-Trough, 10″ Diameter, 2 7/16″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Ball Bearing, Carbon Steel (C.S) |
9101131 | TE102716-RB | 10TE5-RB | TEWO102716URB | Trough End, Without Foot, U-Trough, 10″ Diameter, 2 7/16″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Roller Bearing, Carbon Steel (C.S) |
9101132 | TEF122-BB | 12TEF4-BB | TEFO122UBB | Trough End, With Foot, U-Trough, 12″ Diameter, 2″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Ball Bearing, Carbon Steel (C.S) |
9101133 | TEF122-RB | 12TEF4-RB | TEFO122URB | Trough End, With Foot, U-Trough, 12″ Diameter, 2″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Roller Bearing, Carbon Steel (C.S) |
9101134 | TEF122716-BB | 12TEF5-BB | TEFO122716UBB | Trough End, With Foot, U-Trough, 12″ Diameter, 2 7/16″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Ball Bearing, Carbon Steel (C.S) |
9101135 | TEF122716-RB | 12TEF5-RB | TEFO122716URB | Trough End, With Foot, U-Trough, 12″ Diameter, 2 7/16″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Roller Bearing, Carbon Steel (C.S) |
9101136 | TEF123-BB | 12TEF6-BB | TEFO123UBB | Trough End, With Foot, U-Trough, 12″ Diameter, 3″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Ball Bearing, Carbon Steel (C.S) |
9101137 | TEF123-RB | 12TEF6-RB | TEFO123URB | Trough End, With Foot, U-Trough, 12″ Diameter, 3″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Roller Bearing, Carbon Steel (C.S) |
9101138 | TEF123716-BB | 12TEF7-BB | TEFO123716UBB | Trough End, With Foot, U-Trough, 12″ Diameter, 3 7/16″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Ball Bearing, Carbon Steel (C.S) |
9101139 | TEF123716-RB | 12TEF7-RB | TEFO123716URB | Trough End, With Foot, U-Trough, 12″ Diameter, 3 7/16″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Roller Bearing, Carbon Steel (C.S) |
9101140 | TE122-BB | 12TE4-BB | TEWO122UBB | Trough End, Without Foot, U-Trough, 12″ Diameter, 2″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Ball Bearing, Carbon Steel (C.S) |
9101141 | TE122-RB | 12TE4-RB | TEWO122URB | Trough End, Without Foot, U-Trough, 12″ Diameter, 2″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Roller Bearing, Carbon Steel (C.S) |
9101142 | TE122716-BB | 12TE5-BB | TEWO122716UBB | Trough End, Without Foot, U-Trough, 12″ Diameter, 2 7/16″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Ball Bearing, Carbon Steel (C.S) |
9101143 | TE122716-RB | 12TE5-RB | TEWO122716URB | Trough End, Without Foot, U-Trough, 12″ Diameter, 2 7/16″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Roller Bearing, Carbon Steel (C.S) |
9101144 | TE123-BB | 12TE6-BB | TEWO123UBB | Trough End, Without Foot, U-Trough, 12″ Diameter, 3″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Ball Bearing, Carbon Steel (C.S) |
9101145 | TE123-RB | 12TE6-RB | TEWO123URB | Trough End, Without Foot, U-Trough, 12″ Diameter, 3″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Roller Bearing, Carbon Steel (C.S) |
9101146 | TE123716-BB | 12TE7-BB | TEWO123716UBB | Trough End, Without Foot, U-Trough, 12″ Diameter, 3 7/16″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Ball Bearing, Carbon Steel (C.S) |
9101147 | TE123716-RB | 12TE7-RB | TEWO123716URB | Trough End, Without Foot, U-Trough, 12″ Diameter, 3 7/16″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Roller Bearing, Carbon Steel (C.S) |
9101148 | TEF142716-BB | 14TEF5-BB | TEFO142716UBB | Trough End, With Foot, U-Trough, 14″ Diameter, 2 7/16″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Ball Bearing, Carbon Steel (C.S) |
9101149 | TEF142716-RB | 14TEF5-RB | TEFO142716URB | Trough End, With Foot, U-Trough, 14″ Diameter, 2 7/16″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Roller Bearing, Carbon Steel (C.S) |
9101150 | TEF143-BB | 14TEF6-BB | TEFO143UBB | Trough End, With Foot, U-Trough, 14″ Diameter, 3″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Ball Bearing, Carbon Steel (C.S) |
9101151 | TEF143-RB | 14TEF6-RB | TEFO143URB | Trough End, With Foot, U-Trough, 14″ Diameter, 3″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Roller Bearing, Carbon Steel (C.S) |
9101152 | TEF143716-BB | 14TEF7-BB | TEFO143716UBB | Trough End, With Foot, U-Trough, 14″ Diameter, 3 7/16″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Ball Bearing, Carbon Steel (C.S) |
9101153 | TEF143716-RB | 14TEF7-RB | TEFO143716URB | Trough End, With Foot, U-Trough, 14″ Diameter, 3 7/16″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Roller Bearing, Carbon Steel (C.S) |
9101154 | TE142716-BB | 14TE5-BB | TEWO142716UBB | Trough End, Without Foot, U-Trough, 14″ Diameter, 2 7/16″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Ball Bearing, Carbon Steel (C.S) |
9101155 | TE142716-RB | 14TE5-RB | TEWO142716URB | Trough End, Without Foot, U-Trough, 14″ Diameter, 2 7/16″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Roller Bearing, Carbon Steel (C.S) |
9101156 | TE143-BB | 14TE6-BB | TEWO143UBB | Trough End, Without Foot, U-Trough, 14″ Diameter, 3″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Ball Bearing, Carbon Steel (C.S) |
9101157 | TE143-RB | 14TE6-RB | TEWO143URB | Trough End, Without Foot, U-Trough, 14″ Diameter, 3″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Roller Bearing, Carbon Steel (C.S) |
9101158 | TE143716-BB | 14TE7-BB | TEWO143716UBB | Trough End, Without Foot, U-Trough, 14″ Diameter, 3 7/16″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Ball Bearing, Carbon Steel (C.S) |
9101159 | TE143716-RB | 14TE7-RB | TEWO143716URB | Trough End, Without Foot, U-Trough, 14″ Diameter, 3 7/16″ Shaft Size, 1/4″ Thk., Outside Bolt Pattern, Flanged Roller Bearing, Carbon Steel (C.S) |
9101160 | TEF163-BB | 16TEF6-BB | TEFO163UBB | Trough End, With Foot, U-Trough, 16″ Diameter, 3″ Shaft Size, 3/8″ Thk., Outside Bolt Pattern, Flanged Ball Bearing, Carbon Steel (C.S) |
9101161 | TEF163-RB | 16TEF6-RB | TEFO163URB | Trough End, With Foot, U-Trough, 16″ Diameter, 3″ Shaft Size, 3/8″ Thk., Outside Bolt Pattern, Flanged Roller Bearing, Carbon Steel (C.S) |
9101162 | TEF163716-BB | 16TEF7-BB | TEFO163716UBB | Trough End, With Foot, U-Trough, 16″ Diameter, 3 7/16″ Shaft Size, 3/8″ Thk., Outside Bolt Pattern, Flanged Ball Bearing, Carbon Steel (C.S) |
9101163 | TEF163716-RB | 16TEF7-RB | TEFO163716URB | Trough End, With Foot, U-Trough, 16″ Diameter, 3 7/16″ Shaft Size, 3/8″ Thk., Outside Bolt Pattern, Flanged Roller Bearing, Carbon Steel (C.S) |
9101164 | TE163-BB | 16TE6-BB | TEWO163UBB | Trough End, Without Foot, U-Trough, 16″ Diameter, 3″ Shaft Size, 3/8″ Thk., Outside Bolt Pattern, Flanged Ball Bearing, Carbon Steel (C.S) |
9101165 | TE163-RB | 16TE6-RB | TEWO163URB | Trough End, Without Foot, U-Trough, 16″ Diameter, 3″ Shaft Size, 3/8″ Thk., Outside Bolt Pattern, Flanged Roller Bearing, Carbon Steel (C.S) |
9101166 | TE163716-BB | 16TE7-BB | TEWO163716UBB | Trough End, Without Foot, U-Trough, 16″ Diameter, 3 7/16″ Shaft Size, 3/8″ Thk., Outside Bolt Pattern, Flanged Ball Bearing, Carbon Steel (C.S) |
9101167 | TE163716-RB | 16TE7-RB | TEWO163716URB | Trough End, Without Foot, U-Trough, 16″ Diameter, 3 7/16″ Shaft Size, 3/8″ Thk., Outside Bolt Pattern, Flanged Roller Bearing, Carbon Steel (C.S) |
9101168 | TEF183-BB | 18TEF6-BB | TEFO183UBB | Trough End, With Foot, U-Trough, 18″ Diameter, 3″ Shaft Size, 3/8″ Thk., Outside Bolt Pattern, Flanged Ball Bearing, Carbon Steel (C.S) |
9101169 | TEF183-RB | 18TEF6-RB | TEFO183URB | Trough End, With Foot, U-Trough, 18″ Diameter, 3″ Shaft Size, 3/8″ Thk., Outside Bolt Pattern, Flanged Roller Bearing, Carbon Steel (C.S) |
9101170 | TEF183716-BB | 18TEF7-BB | TEFO183716UBB | Trough End, With Foot, U-Trough, 18″ Diameter, 3 7/16″ Shaft Size, 3/8″ Thk., Outside Bolt Pattern, Flanged Ball Bearing, Carbon Steel (C.S) |
9101171 | TEF183716-RB | 18TEF7-RB | TEFO183716URB | Trough End, With Foot, U-Trough, 18″ Diameter, 3 7/16″ Shaft Size, 3/8″ Thk., Outside Bolt Pattern, Flanged Roller Bearing, Carbon Steel (C.S) |
9101172 | TEF1831516-BB | 18TEF8-BB | TEFO1831516UBB | Trough End, With Foot, U-Trough, 18″ Diameter, 3 15/16″ Shaft Size, 3/8″ Thk., Outside Bolt Pattern, Flanged Ball Bearing, Carbon Steel (C.S) |
9101173 | TEF1831516-RB | 18TEF8-RB | TEFO1831516URB | Trough End, With Foot, U-Trough, 18″ Diameter, 3 15/16″ Shaft Size, 3/8″ Thk., Outside Bolt Pattern, Flanged Roller Bearing, Carbon Steel (C.S) |
9101174 | TE183-BB | 18TE6-BB | TEWO183UBB | Trough End, Without Foot, U-Trough, 18″ Diameter, 3″ Shaft Size, 3/8″ Thk., Outside Bolt Pattern, Flanged Ball Bearing, Carbon Steel (C.S) |
9101175 | TE183-RB | 18TE6-RB | TEWO183URB | Trough End, Without Foot, U-Trough, 18″ Diameter, 3″ Shaft Size, 3/8″ Thk., Outside Bolt Pattern, Flanged Roller Bearing, Carbon Steel (C.S) |
9101176 | TE183716-BB | 18TE7-BB | TEWO183716UBB | Trough End, Without Foot, U-Trough, 18″ Diameter, 3 7/16″ Shaft Size, 3/8″ Thk., Outside Bolt Pattern, Flanged Ball Bearing, Carbon Steel (C.S) |
9101177 | TE183716-RB | 18TE7-RB | TEWO183716URB | Trough End, Without Foot, U-Trough, 18″ Diameter, 3 7/16″ Shaft Size, 3/8″ Thk., Outside Bolt Pattern, Flanged Roller Bearing, Carbon Steel (C.S) |
9101178 | TE1831516-BB | 18TE8-BB | TEWO1831516UBB | Trough End, Without Foot, U-Trough, 18″ Diameter, 3 15/16″ Shaft Size, 3/8″ Thk., Outside Bolt Pattern, Flanged Ball Bearing, Carbon Steel (C.S) |
9101179 | TE1831516-RB | 18TE8-RB | TEWO1831516URB | Trough End, Without Foot, U-Trough, 18″ Diameter, 3 15/16″ Shaft Size, 3/8″ Thk., Outside Bolt Pattern, Flanged Roller Bearing, Carbon Steel (C.S) |
9101180 | TEF203-BB | 20TEF6-BB | TEFO203UBB | Trough End, With Foot, U-Trough, 20″ Diameter, 3″ Shaft Size, 3/8″ Thk., Outside Bolt Pattern, Flanged Ball Bearing, Carbon Steel (C.S) |
9101181 | TEF203-RB | 20TEF6-RB | TEFO203URB | Trough End, With Foot, U-Trough, 20″ Diameter, 3″ Shaft Size, 3/8″ Thk., Outside Bolt Pattern, Flanged Roller Bearing, Carbon Steel (C.S) |
9101182 | TEF203716-BB | 20TEF7-BB | TEFO203716UBB | Trough End, With Foot, U-Trough, 20″ Diameter, 3 7/16″ Shaft Size, 3/8″ Thk., Outside Bolt Pattern, Flanged Ball Bearing, Carbon Steel (C.S) |
9101183 | TEF203716-RB | 20TEF7-RB | TEFO203716URB | Trough End, With Foot, U-Trough, 20″ Diameter, 3 7/16″ Shaft Size, 3/8″ Thk., Outside Bolt Pattern, Flanged Roller Bearing, Carbon Steel (C.S) |
9101184 | TEF2031516-BB | 20TEF8-BB | TEFO2031516UBB | Trough End, With Foot, U-Trough, 20″ Diameter, 3 15/16″ Shaft Size, 3/8″ Thk., Outside Bolt Pattern, Flanged Ball Bearing, Carbon Steel (C.S) |
9101185 | TEF2031516-RB | 20TEF8-RB | TEFO2031516URB | Trough End, With Foot, U-Trough, 20″ Diameter, 3 15/16″ Shaft Size, 3/8″ Thk., Outside Bolt Pattern, Flanged Roller Bearing, Carbon Steel (C.S) |
9101186 | TE203-BB | 20TE6-BB | TEWO203UBB | Trough End, Without Foot, U-Trough, 20″ Diameter, 3″ Shaft Size, 3/8″ Thk., Outside Bolt Pattern, Flanged Ball Bearing, Carbon Steel (C.S) |
9101187 | TE203-RB | 20TE6-RB | TEWO203URB | Trough End, Without Foot, U-Trough, 20″ Diameter, 3″ Shaft Size, 3/8″ Thk., Outside Bolt Pattern, Flanged Roller Bearing, Carbon Steel (C.S) |
9101188 | TE203716-BB | 20TE7-BB | TEWO203716UBB | Trough End, Without Foot, U-Trough, 20″ Diameter, 3 7/16″ Shaft Size, 3/8″ Thk., Outside Bolt Pattern, Flanged Ball Bearing, Carbon Steel (C.S) |
9101189 | TE203716-RB | 20TE7-RB | TEWO203716URB | Trough End, Without Foot, U-Trough, 20″ Diameter, 3 7/16″ Shaft Size, 3/8″ Thk., Outside Bolt Pattern, Flanged Roller Bearing, Carbon Steel (C.S) |
9101190 | TE2031516-BB | 20TE8-BB | TEWO2031516UBB | Trough End, Without Foot, U-Trough, 20″ Diameter, 3 15/16″ Shaft Size, 3/8″ Thk., Outside Bolt Pattern, Flanged Ball Bearing, Carbon Steel (C.S) |
9101191 | TE2031516-RB | 20TE8-RB | TEWO2031516URB | Trough End, Without Foot, U-Trough, 20″ Diameter, 3 15/16″ Shaft Size, 3/8″ Thk., Outside Bolt Pattern, Flanged Roller Bearing, Carbon Steel (C.S) |
9101192 | TEF243716-BB | 24TEF7-BB | TEFO243716UBB | Trough End, With Foot, U-Trough, 24″ Diameter, 3 7/16″ Shaft Size, 3/8″ Thk., Outside Bolt Pattern, Flanged Ball Bearing, Carbon Steel (C.S) |
9101193 | TEF243716-RB | 24TEF7-RB | TEFO243716URB | Trough End, With Foot, U-Trough, 24″ Diameter, 3 7/16″ Shaft Size, 3/8″ Thk., Outside Bolt Pattern, Flanged Roller Bearing, Carbon Steel (C.S) |
9101194 | TEF2431516-BB | 24TEF8-BB | TEFO2431516UBB | Trough End, With Foot, U-Trough, 24″ Diameter, 3 15/16″ Shaft Size, 3/8″ Thk., Outside Bolt Pattern, Flanged Ball Bearing, Carbon Steel (C.S) |
9101195 | TEF2431516-RB | 24TEF8-RB | TEFO2431516URB | Trough End, With Foot, U-Trough, 24″ Diameter, 3 15/16″ Shaft Size, 3/8″ Thk., Outside Bolt Pattern, Flanged Roller Bearing, Carbon Steel (C.S) |
9101196 | TE243716-BB | 24TE7-BB | TEWO243716UBB | Trough End, Without Foot, U-Trough, 24″ Diameter, 3 7/16″ Shaft Size, 3/8″ Thk., Outside Bolt Pattern, Flanged Ball Bearing, Carbon Steel (C.S) |
9101197 | TE243716-RB | 24TE7-RB | TEWO243716URB | Trough End, Without Foot, U-Trough, 24″ Diameter, 3 7/16″ Shaft Size, 3/8″ Thk., Outside Bolt Pattern, Flanged Roller Bearing, Carbon Steel (C.S) |
9101198 | TE2431516-BB | 24TE8-BB | TEWO2431516UBB | Trough End, Without Foot, U-Trough, 24″ Diameter, 3 15/16″ Shaft Size, 3/8″ Thk., Outside Bolt Pattern, Flanged Ball Bearing, Carbon Steel (C.S) |
9101199 | TE2431516-RB | 24TE8-RB | TEWO2431516URB | Trough End, Without Foot, U-Trough, 24″ Diameter, 3 15/16″ Shaft Size, 3/8″ Thk., Outside Bolt Pattern, Flanged Roller Bearing, Carbon Steel (C.S) |
