Screw - Conveyor Parts & Equipment

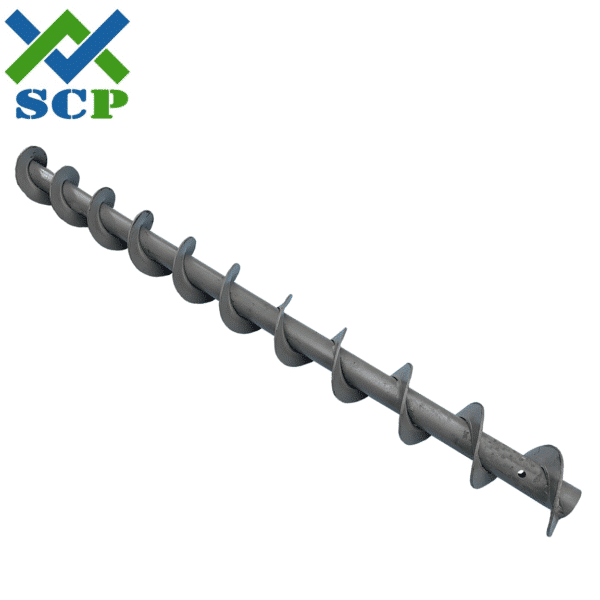

The screw is the heart of the screw conveyor. The screw rotates to provide forward motion to the powder bulk solid being conveyed. Screw are available in a verity of configurations and lengths. Click HERE for help on selecting a screw. The screws listed in the store are stock and available for immediate shipping. Custom screw can be designed and built in about 2 weeks. Click HERE to send us information about your custom screw need.

Products List

Screw, 6″ Diameter, 1 1/2″ Shaft Size, 2-Bolt, Helicoid-Full Pitch, Carbon Steel (C.S) With 3/16″ Thk. Right Hand Flighting Skip Welded Both Sides to 2″ Sch. 40 Pipe X 9′-10″ O.A.L.
$ 253.19 SCP PN: 9112102
Screw, 9″ Diameter, 1 1/2″ Shaft Size, 2-Bolt, Helicoid-Full Pitch, Carbon Steel (C.S) With 3/16″ Thk. Right Hand Flighting Skip Welded Both Sides to 2″ Sch. 40 Pipe X 9′-10″ O.A.L.
$ 287.92 SCP PN: 9112104
Screw, 9″ Diameter, 2″ Shaft Size, 2-Bolt, Helicoid-Full Pitch, Carbon Steel (C.S) With 7/32″ Thk. Right Hand Flighting Skip Welded Both Sides to 2 1/2″ Sch. 40 Pipe X 9′-10″ O.A.L.
$ 368.04 SCP PN: 9112107
Screw, 12″ Diameter, 2″ Shaft Size, 2-Bolt, Helicoid-Full Pitch, Carbon Steel (C.S) With 3/16″ Thk. Right Hand Flighting Skip Welded Both Sides to 2 1/2″ Sch. 40 Pipe X 11′-10″ O.A.L.
$ 489.31 SCP PN: 9112111
Screw, 12″ Diameter, 2 7/16″ Shaft Size, 2-Bolt, Helicoid-Full Pitch, Carbon Steel (C.S) With 3/16″ Thk. Right Hand Flighting Skip Welded Both Sides to 3″ Sch. 40 Pipe X 11′-9″ O.A.L.
$ 495.18 SCP PN: 9112113
Screw, 12″ Diameter, 3″ Shaft Size, 2-Bolt, Helicoid-Full Pitch, Carbon Steel (C.S) With 7/32″ Thk. Right Hand Flighting Skip Welded Both Sides to 3 1/2″ Sch. 40 Pipe X 11′-9″ O.A.L.
$ 581.17 SCP PN: 9112114
Screw, 14″ Diameter, 2 7/16″ Shaft Size, 2-Bolt, Helicoid-Full Pitch, Carbon Steel (C.S) With 1/8″ Thk. Right Hand Flighting Skip Welded Both Sides to 3″ Sch. 40 Pipe X 11′-9″ O.A.L.
$ 455.11 SCP PN: 9112115
Screw, 14″ Diameter, 3″ Shaft Size, 2-Bolt, Helicoid-Full Pitch, Carbon Steel (C.S) With 7/32″ Thk. Right Hand Flighting Skip Welded Both Sides to 3 1/2″ Sch. 40 Pipe X 11′-9″ O.A.L.
$ 598.80 SCP PN: 9112116
Screw, 16″ Diameter, 3″ Shaft Size, 2-Bolt, Helicoid-Full Pitch, Carbon Steel (C.S) With 5/32″ Thk. Right Hand Flighting Skip Welded Both Sides to 3 1/2″ Sch. 40 Pipe X 11′-9″ O.A.L.
$ 552.32 SCP PN: 9112117
