Dimensional standard for 124″ Diameter U-trough

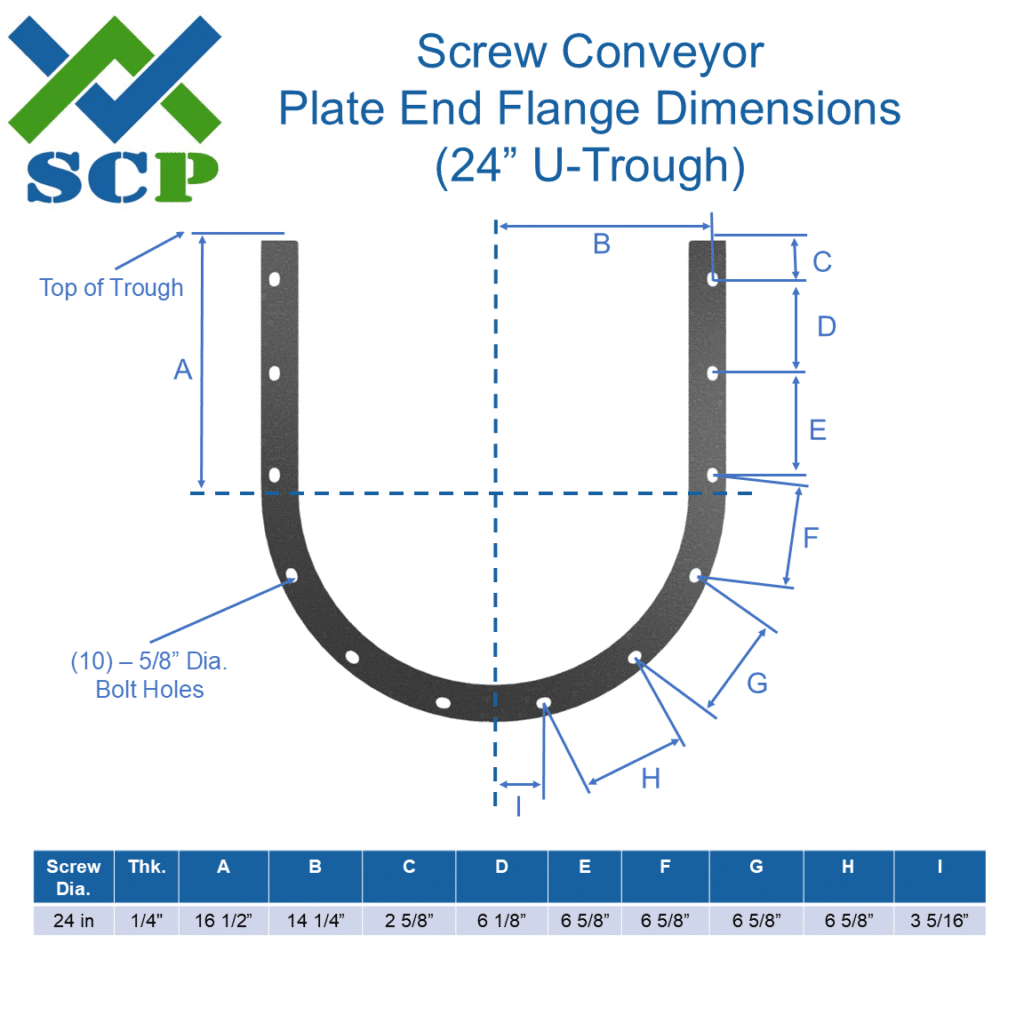

Screw Conveyor Plate End Flange U-Trough Dims 24in

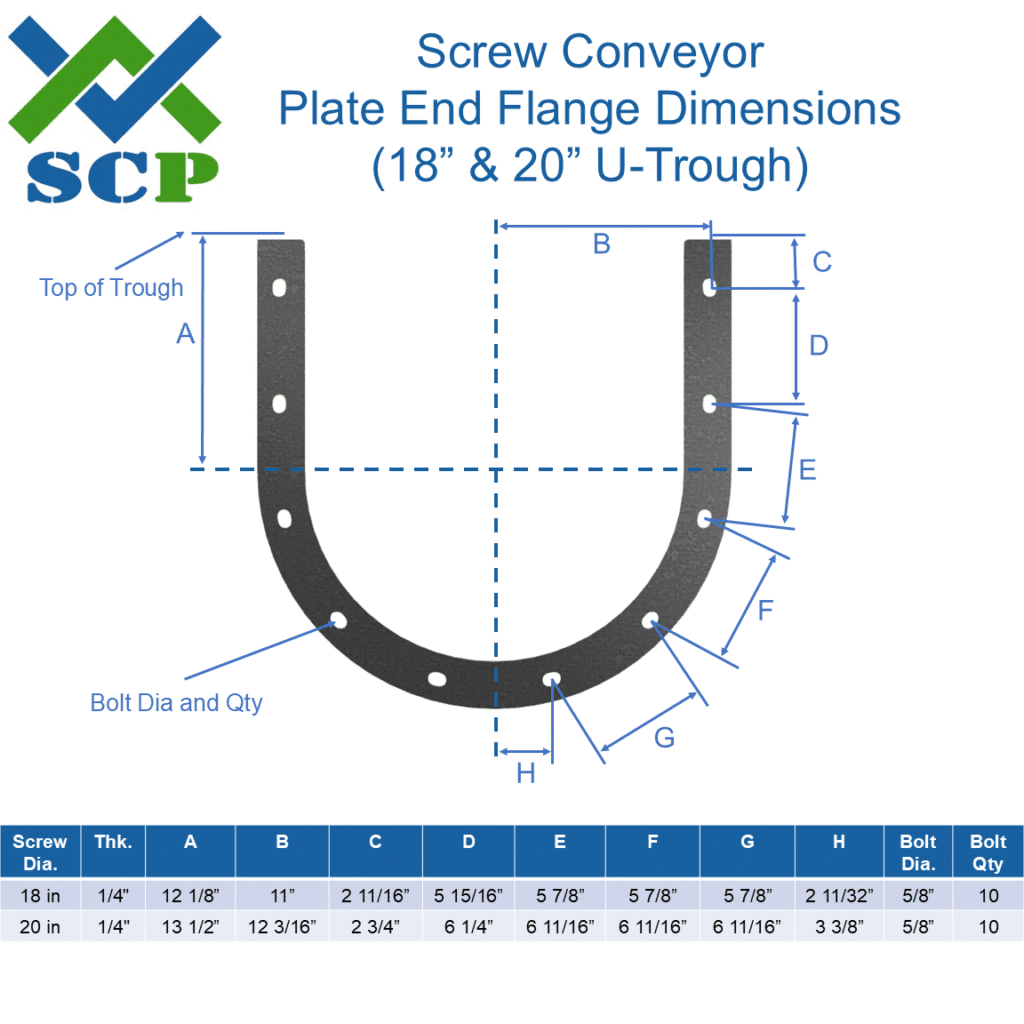

Dimensional standard for 18″ and 20″ Diameter U-trough

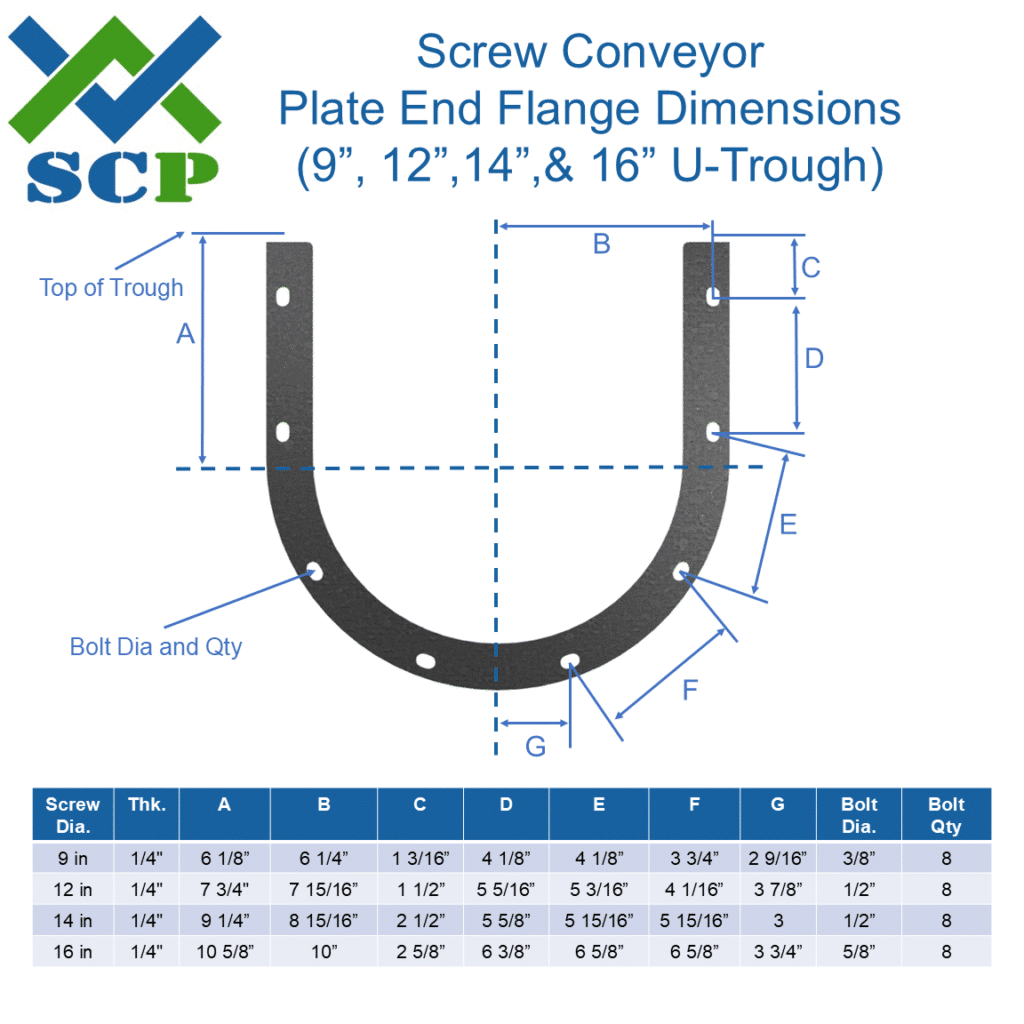

Dimensional standard for 9″, 12″, 14″ and 16″ Diameter U-trough
Dimensional standard for 6″ Diameter U-trough
The screw conveyor driveshaft is used to drive the shaft by attaching a sprocket or low speed coupling.
A dimensional chart for screw conveyor trough ends with bolting and flange measurements.
